neutrik-us > Products > NA3F5F

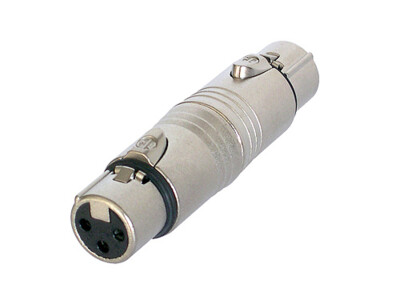

NA3FF

NA3F5F

3 pole XLR female - 5 pole XLR female (gender conversion adapter)

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information
Download Data Sheet

Features & Benefits

Features & Benefits

  • Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
  • Professional look and compact space saving design, based on the XX Series
  • Rugged diecast shell for best reliability.

Downloads

  • Drawing NA3F5F
  • Drawing NA3F5F
  • Product Guide - Section Accessories

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NA3F5F
Connection Type Adapter
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 2 GΩ
Rated current per contact 3 A
Mechanical
Insertion force < 20 N
Withdrawal force < 20 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Latch lock
Material
Contact plating 2 µm Ag
Contacts Brass (CuZn39Pb3) (5 pole female)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Temperature range -30 °C to +80 °C
