MPC

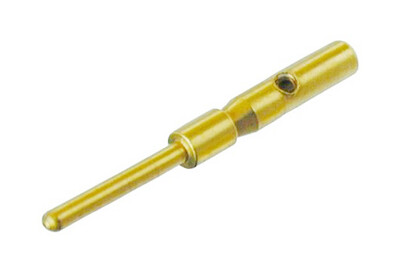

Male crimp contact, gold plated, for cable and chassis connectors
Wire size: AWG 24 / 0.22 mm²
Crimping standard: No. 5 / M22520/2-01
The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).
The miniCON with its flexible and compact design is perfectly suitable for multipin/industrial applications. The rugged all metal miniature connector offers a push-pull locking device and stands out by an excellent cost/performance ratio.
- Easy assembly: contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts
- Up to 12 contacts selectable
- Push-pull self-locking system
- Rugged, precisely machined all metal design
- Gold plated contacts
Technical Information
| Product | |
|---|---|
| Title | MPC |
| Connection Type | miniCON |
| Gender | male |
| Mechanical | |
|---|---|
| Wiresize | 0,22 mm² |
| Wiresize | 24 AWG |
| Wiring | Crimp contacts |
| Crimp size | No. 5 / M22520/2-01 |

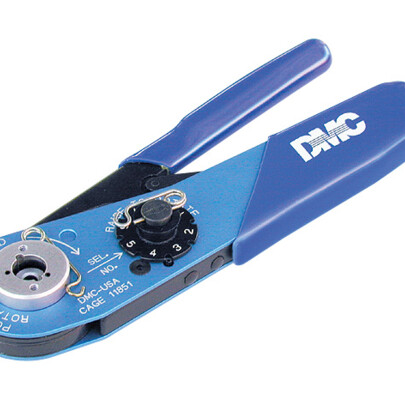

DMC crimptool AFM8 acc. M22520/2-01
Male insert for up to 12 contacts

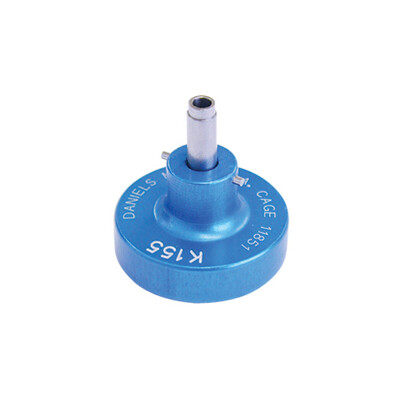

Modified DMC positioner (K155) for MPC (miniCON male crimp contact)

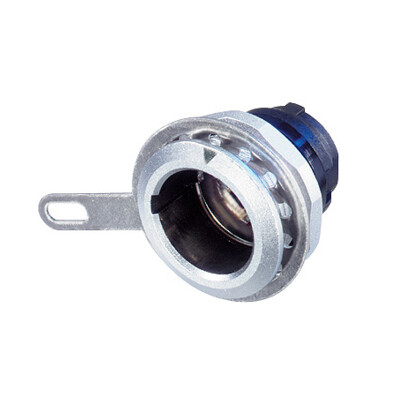

*** DISCONTINUED *** Male chassis connector housing and insert pre-assembled
Cable connector housing incl. chuck type strain relief and bushing for male and female inserts
Set of strain relief crimp version for various cable diameters
