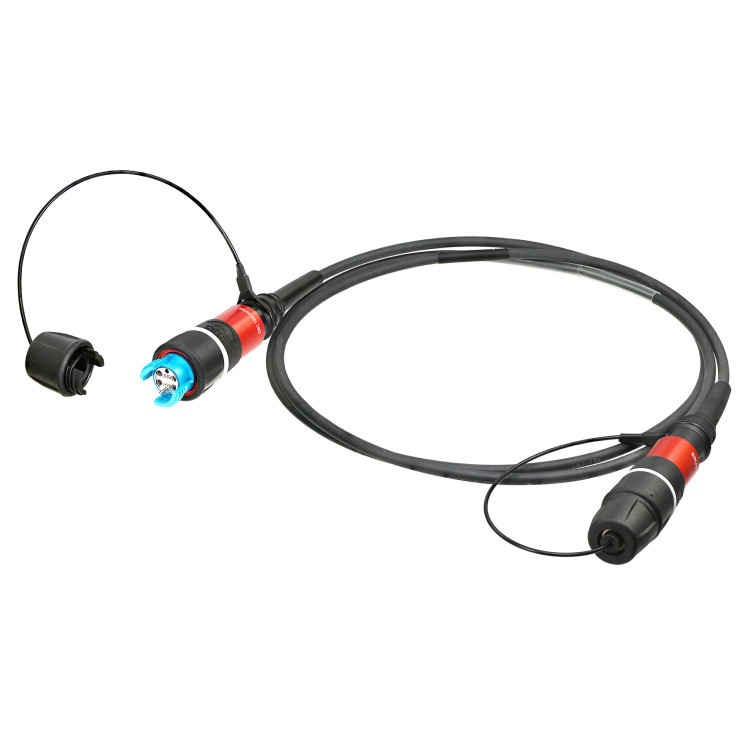

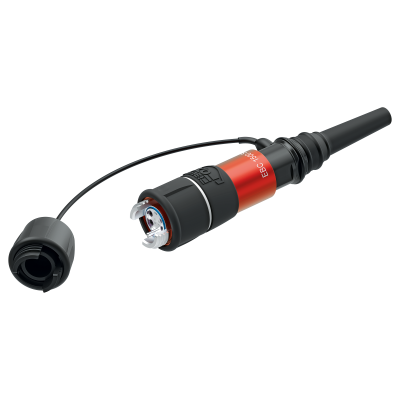

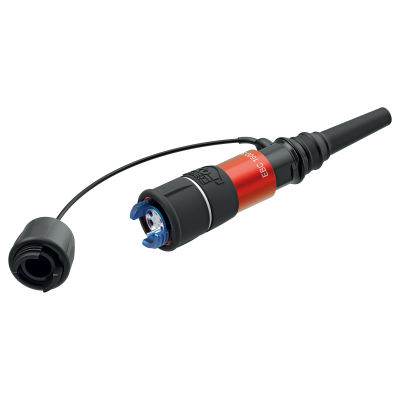

FIBERFOX EBC15 4CH Cable
The FIBERFOX 4CH Cable connector is an expanded beam hermaphroditic connector suited for a vast array of applications, including Lighting, Network, PA, Video, Broadcast, Defense & Government, Railway and Petrochemical. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The connector is designed according to the MIL-DTL-83526 standard and fits to all other connectors with this standard.
Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX hermaphroditic coupling eliminates the need for adaptors and female and male mating halves. The cable connector comes pre-assembled and is not available as a single component. The finished cable is available in standardized lengths and is packed either on a drum or airspool.
- available in multimode and singlemode
- Ø = 5,5mm, PUR flame-retardant, halogen-free, bent tolerant
- Ready-made up with connectors EBC1504
- Heavy-duty, connectors IP68 (even unprotected)
- Cables are prolongable direct, no couplers required
- Wear-free connectors, > 10.000 mating cycles without any maintenance
- No special cleaning or measurement tools required
Technical Information
| Product | |
|---|---|
| Title | FIBERFOX EBC15 4CH |
| Gender | Hermaphroditic |
| Mechanical | |
|---|---|
| Tensile Strength | 1'800N |
| Compressive load | 50'000N |
| Lifetime | >10000 mating cycles |
| Free fall Resistance | 500 falls onto concrete from 1.2M height |
| Bump resistance | 4000 bumps @ 40g acceleration |
| Vibrational Sinusoidal | 10-500Hz, 0.75 amplitude @ 10g acceleration |
| Material | |
|---|---|
| Boot | Rubber (EPDM) |
| Insert | Steel |
| Shell | Aluminium |
| Shell plating | Hard anodize |
| Strain relief | Brass |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection Class | IP68 mated and unmated (1m for 60 min) |
| Compatibility | MIL-DTL-83526 |
| Temperature Range | -40°C to +70°C |
| Optical | |
|---|---|
| Insertion Loss Multimode | Typ. 1.5dB per connection / Max. 2.5dB per connection |
| Return Loss Multimode | N/A |
| Insertion Loss Singlemode | Typ. 1.0 dB max. 2.0 dB per connection (according with IEC 61300-3-4) Max. 2.5dB per connection (acc. with IEC 61300-3-34) |
| Return Loss Singlemode | Typ. >32 dB (according with IEC 61300-3-6) |
| Optical Connector | EBC |
| Optical wiring ISO / IEC 11801 | ISO / IEC 11801 |
| Mobile cable | |
|---|---|
| Colour | Black, shiny |
| Core diameter | Multimode 50µm / Singlemode 9µm |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 5.8 cm |
| Number of fibers | 4 |
| Cable rentation | Aramid yarn |
| Weight | 23kg/km |
| Overal diameter | Ø 5.8 mm |
| Multimode order code | Multimode product code | Description | Singlemode order code | Singlemode product code | Description |
| 1027412 | NKO4M3-FX-0-005 | fiberFOX MM 4CH 5m OM3 airspool | NKO4S-FX-0-005 | fiberFOX SM 4CH 5m airspool | |
| 1027413 | NKO4M3-FX-0-010 | fiberFOX MM 4CH 10m OM3 airspool | NKO4S-FX-0-010 | fiberFOX SM 4CH 10m airspool | |
| 1027414 | NKO4M3-FX-0-020 | fiberFOX MM 4CH 20m OM3 airspool | NKO4S-FX-0-020 | fiberFOX SM 4CH 20m airspool | |
| 1027415 | NKO4M3-FX-0-050 | fiberFOX MM 4CH 50m OM3 airspool | 1036527 | NKO4S-FX-0-050 | fiberFOX SM 4CH 50m airspool |
| 1027416 | NKO4M3-FX-0-100 | fiberFOX MM 4CH 100m OM3 airspool | 1036528 | NKO4S-FX-0-100 | fiberFOX SM 4CH 100m airspool |
| 1027417 | NKO4M3-FX-0-150 | fiberFOX MM 4CH 150m OM3 airspool | NKO4S-FX-0-150 | fiberFOX SM 4CH 150m airspool | |
| 1027418 | NKO4M3-FX-2-050 | fiberFOX MM 4CH 50m OM3 cable reel | 1036533 | NKO4S-FX-2-050 | fiberFOX SM 4CH 50m cable reel |
| 1027419 | NKO4M3-FX-2-100 | fiberFOX MM 4CH 100m OM3 cable reel | 1036534 | NKO4S-FX-2-100 | fiberFOX SM 4CH 100m cable reel |
| 1027420 | NKO4M3-FX-2-150 | fiberFOX MM 4CH 150m OM3 cable reel | NKO4S-FX-2-150 | fiberFOX SM 4CH 150m cable reel | |
| *Customized Cable Solutions with different length up on request. | |||||
