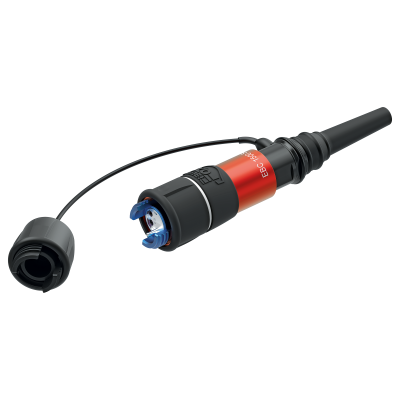

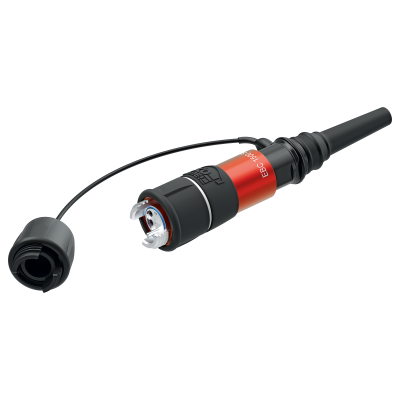

NKO2M3-FX-0-050_open blue NKO2M3-FX-0-050_open
NKO2M3-FX-0-050_open blue
NKO2M3-FX-0-050_open
1/2
neutrik-us / Products / FIBERFOX / FIBERFOX EBC15 (D-size) / FIBERFOX EBC15 Cable / FIBERFOX EBC15 2CH Cable

FIBERFOX EBC15 2CH Cable

Download Data Sheet

The FIBERFOX 2CH Cable connector is an expanded beam hermaphroditic connector suited for a vast array of applications, including Lighting, Network, PA, Video, Broadcast, Defense & Government, Railway and Petrochemical. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The connector is designed according to the MIL-DTL-83526 standard and is compatible all other connectors which use this standard. Neutrik offers this extraordinary connector solution in singlemode and multimode.

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX hermaphroditic coupling eliminates the need for adaptors and female and male mating halves. The cable connector comes pre-assembled and is not available as a single component. The finished cable is available in standardized lengths and is packed either on a drum or an airspool.

Features & Benefits
  • available in multimode and singlemode
  • Heavy-duty, connectors IP68 (even unprotected)
  • Wear-free connectors, > 10.000 mating cycles without any maintenance
  • No special cleaning or measurement tools required
  • Cables are prolongable direct, no couplers required
  • Ø = 5mm, PUR flame-retardant, halogen-free, bent tolerant
  • Ready-made up with connectors EBC1502
Downloads
NKO2M3-FX_Step_01
STEP - 7.29 MB
NKO2S_FX_01
STEP - 17.82 MB
NKO2M3-FX_Drawing_01
pdf - 315.32 KB
NKO2S_FX_Drawing_01
pdf - 98.72 KB
NKO2M3-FX_Drawing_01
vnd.dwg - 589.45 KB
NKO2S_FX_Drawing_01
vnd.dwg - 252.39 KB
Handling Instruction - FIBERFOX
pdf - 1.42 MB
NEUTRIK - FIBERFOX EXPANDED BEAM CONNECTOR - NF32 V7 202410
pdf - 12.82 MB
NDS29 - FIBERFOX 2CH
pdf - 185.14 KB

Technical Information

Product
Title FIBERFOX EBC15 2CH
Gender Hermaphroditic
Mechanical
Tensile Strength 1'800N
Compressive load 50'000N
Lifetime >10000 mating cycles
Free fall Resistance 500 falls onto concrete from 1.2M height
Bump resistance 4000 bumps @ 40g acceleration
Vibrational Sinusoidal 10-500Hz, 0.75 amplitude @ 10g acceleration
Material
Boot Rubber (EPDM)
Insert Steel
Shell Aluminium
Shell plating Hard anodize
Strain relief Brass
Environmental
Flammability UL 94 V-0
Protection Class IP68 mated and unmated (1m for 60 min)
Compatibility MIL-DTL-83526
Temperature Range -40°C to + 70°C
Optical
Insertion Loss Multimode Typ. 1.5dB per connection / Max. 2.5dB per connection
Return Loss Multimode N/A
Insertion Loss Singlemode Typ. 1.0 dB max. 2.0 dB per connection (according with IEC 61300-3-4)
Max. 2.5dB per connection (acc. with IEC 61300-3-34)
Return Loss Singlemode Typ. >32 dB (according with IEC 61300-3-6)
Optical connector EBC
Optical wiring ISO / IEC 11801 ISO / IEC 11801
Mobile cable
Colour Black, shinny
Core diameter Multimode 50µm / Singlemode 9µm
Cladding diameter 125 µm
Comment PUR
minimal bending radius 5.0 cm
Number of fibers 2
Cable rentation Aramid yarn
Weight 23kg/km
Overal diameter Ø 5.0 mm
Accessories
NOR-FX*
SCNOX-FX
SCDP-FX-*

Sealing gasket for D-shape chassis connectors, 6 colors

FIBERFOX 27610011 o adapters.png
FIBERFOX Adaptor BOX
FIBERFOX_NO2M4DW-FX_persp front_RGB_WEB !.png
FIBERFOX EBC15 2CH briDge

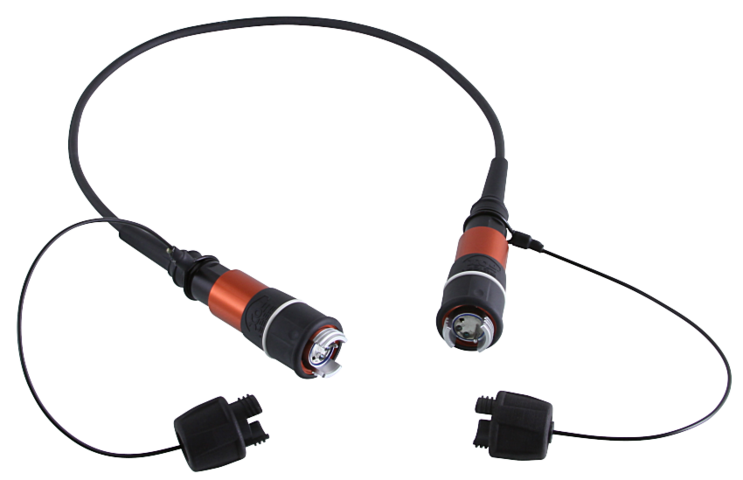

FIBERFOX_27500745_o_cable_rm_02
CABLE 2CH
Multimode order codeMultimode product codeDescriptionSinglemode order codeSinglemode product codeDescription
1027401NKO2M3-FX-0-005FIBERFOX MM 2CH 5m OM3 airspool NKO2S-FX-0-005FIBERFOX SM 2CH 5m airspool
1027402NKO2M3-FX-0-010FIBERFOX MM 2CH 10m OM3 airspool NKO2S-FX-0-010FIBERFOX SM 2CH 10m airspool
1027403NKO2M3-FX-0-020FIBERFOX MM 2CH 20m OM3 airspool NKO2S-FX-0-020FIBERFOX SM 2CH 20m airspool
1027404NKO2M3-FX-0-050FIBERFOX MM 2CH 50m OM3 airspool1037493NKO2S-FX-0-050FIBERFOX SM 2CH 50m airspool
1027405NKO2M3-FX-0-100FIBERFOX MM 2CH 100m OM3 airspool1037494NKO2S-FX-0-100FIBERFOX SM 2CH 100m airspool
1027406NKO2M3-FX-0-150FIBERFOX MM 2CH 150m OM3 airspool NKO2S-FX-0-150FIBERFOX SM 2CH 150m airspool
1027408NKO2M3-FX-2-050FIBERFOX MM 2CH 50m OM3 cable reel1036523NKO2S-FX-2-050FIBERFOX SM 2CH 50m cable reel
1027409NKO2M3-FX-2-100FIBERFOX MM 2CH 100m OM3 cable reel1036524NKO2S-FX-2-100FIBERFOX SM 2CH 100m cable reel
1027410NKO2M3-FX-2-150FIBERFOX MM 2CH 150m OM3 cable reel1038224NKO2S-FX-2-150FIBERFOX SM 2CH 150m cable reel
*Customized Cable Solutions with different length up on request.
