DIE-BNC-UG

Download Data Sheet

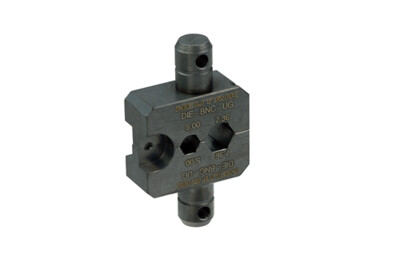

Crimp tool die for HX-BNC.

Pin crimping: 1.6 mm
Shield and jacket: HEX crimp 7.36 mm (A), 5.00 mm (B)

Downloads
bnc-ug-1
pdf - 99.45 KB
bnc-ug
dxf - 26.54 KB

Technical Information

Product
Title DIE-BNC-UG
Mechanical
Crimp size 5.00, 7.36 Hex crimp (shield) acc. MIL22520/5-43(B), MIL22520/5-41(A)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Wiresize
Zubehör
video
HX-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-BNC-*
