New: powerCON XX | IEC 60320-1 compliant

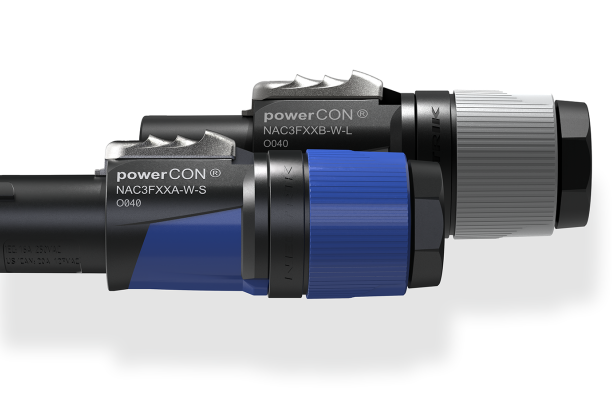

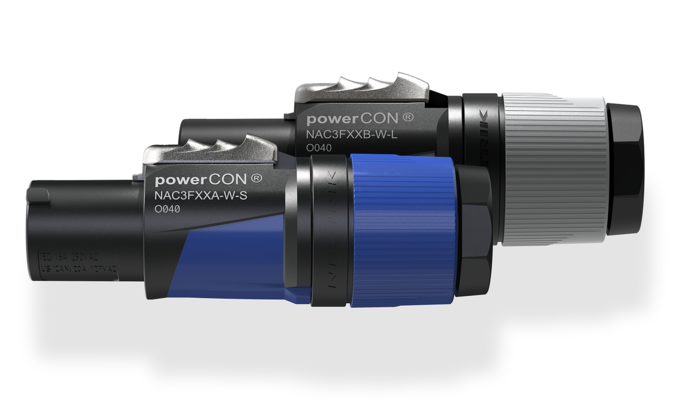

NAC3FXXA-B Seite

We are glad to inform you about a major extension of our powerCON 20 A blue & grey portfolio.

Compliant with Safety Standards
Device standards, such as IEC62368-1, IEC60799 or UL817, and safety regulations demand power (mains supply) connectors in accordance with IEC/EN/UL/CSA 60320-1. For that reason, Neutrik is now providing a powerCON blue & grey connectivity solution which is fully compliant with the various globally relevant versions of the 60320-1 standard

Features

  • IEC EN 60320-1 and cUL 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 and UL817 respectively as well as equipment acc. to IEC 62368-1
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Ergonomic design with slip-proof two-compound molded housing
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 16 mm:
    “-S”: 6 – 12 mm “-L”: 10 – 16 mm
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing

Backwards compatibility
Die neuen NAX3FXXA-W-* und NAC3FXXB-W-* sind vollständig steckkompatibel mit bereits auf dem Markt befindlichen blauen und grauen NEUTRIK-Einbauversionen (nicht NAC3MPXX*-Serie).
ACHTUNG: Diese Kombinationen unterstützen jedoch nicht das Stecken unter Last und erfüllen daher nicht die 60320-1-Zertifizierung.
The new NAX3FXXA-W-* and NAC3FXXB-W-* are fully mating compatible with all existing NEUTRIK blue & grey (“non NAC3MPXX* series”) receptacles already in the market.
ATTENTION: These combinations do not support the CBC functionality and hence do not fulfill 60320-1 certification.

USPs

  • IEC/EN/UL/CSA 60320-1 compliance (CBC, locking bushing) and herewith suitable as components to meet device standards such as IEC62368-1, IEC60799 or UL817
  • “-L” versions certified for cables up to 16mm cable O.D. and 2.5mm² / AWG12
  • Slip-proof two compound housing for improved handling

Product Sites

NAC3FXXA-W-S

NAC3FXXA-W-L

NAC3FXXB-W-S

NAC3FXXB-W-L
