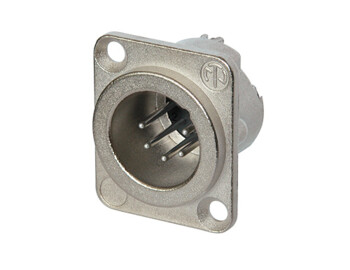

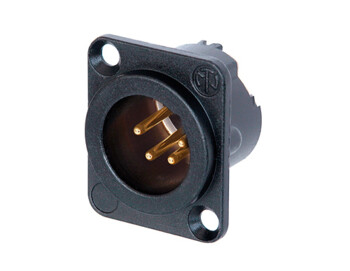

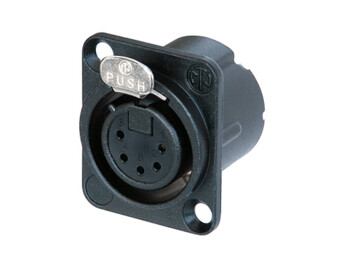

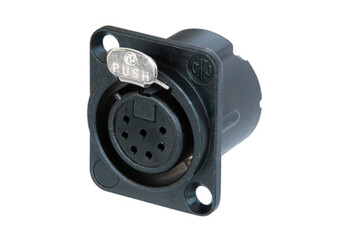

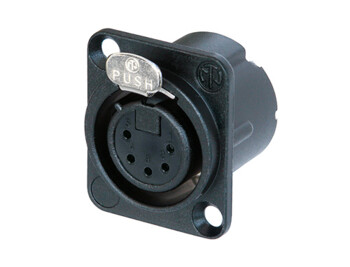

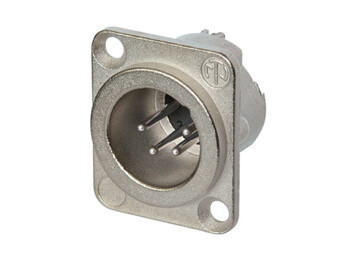

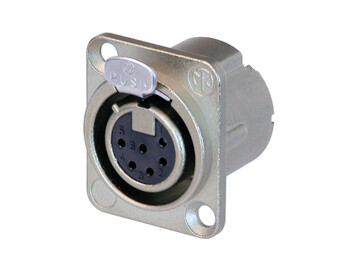

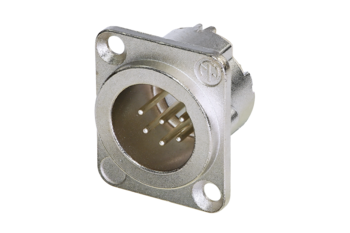

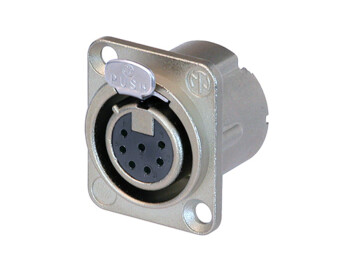

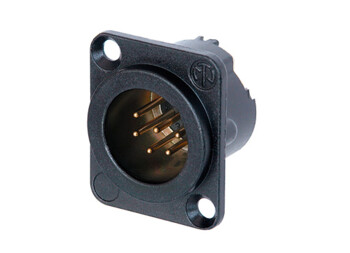

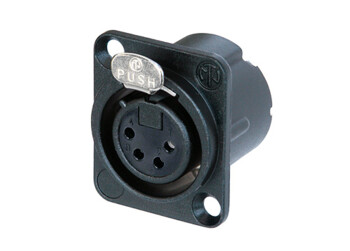

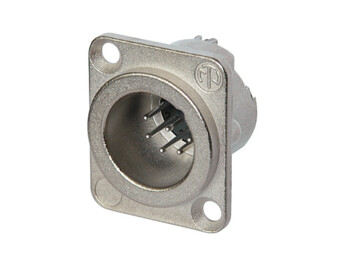

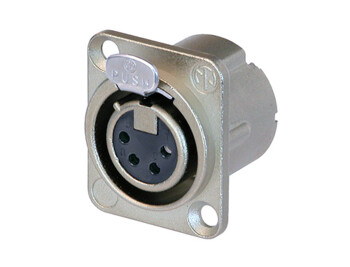

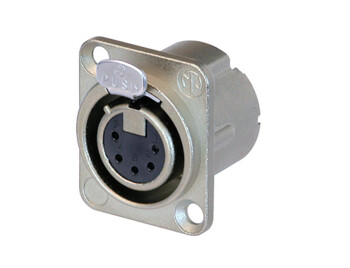

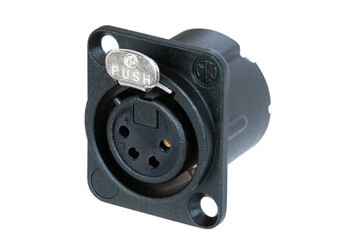

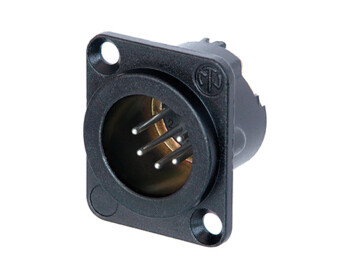

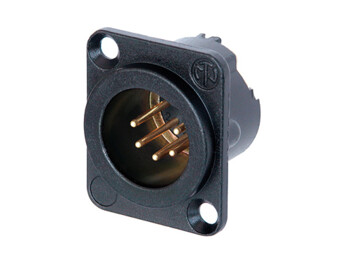

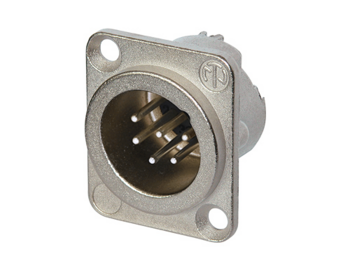

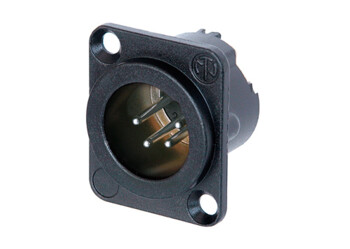

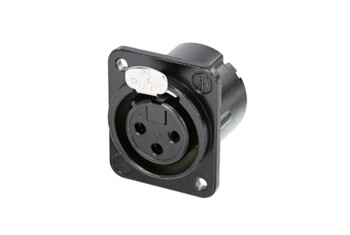

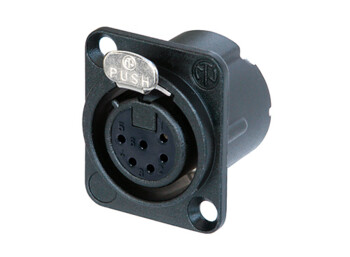

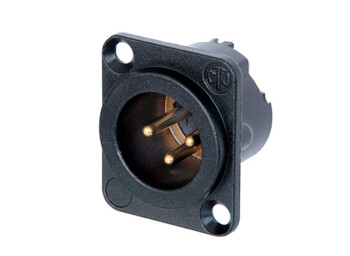

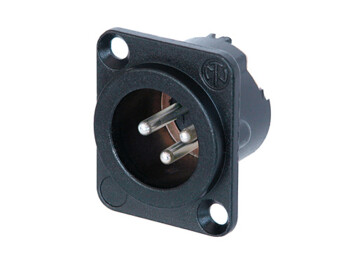

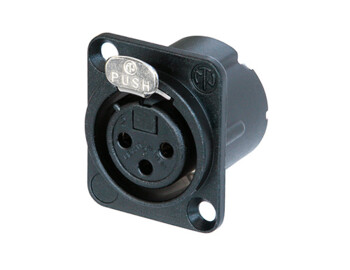

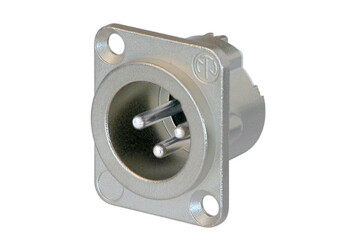

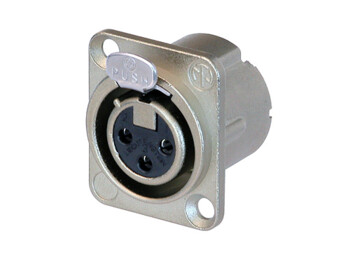

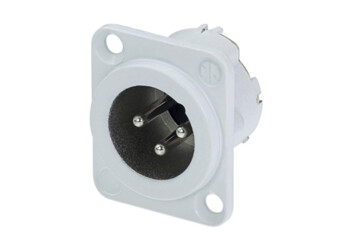

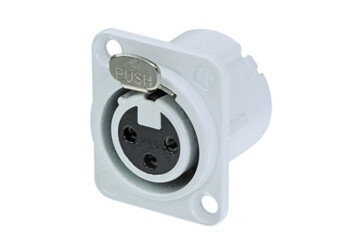

DLX Series

Neutrik's DLX series - the next generation of the popular DL XLR chassis connectors - provides unequalled performance through quality design. The new DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Reliability, robustness and dependability derive from incorporating latest components from the well proven and reliable XX and A series connectors.

Termination
Solder cups

Locking mechanism

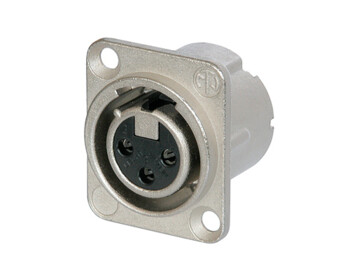

-0 = no latch, retention spring
No suffix = latch lock

Grounding
Separate duplex ground contact to mating connector shell and front panel with the option of solder connection to pin1.

Panel mount
Front and rear

Panel fastening
Standard: Countersunk mounting holes to accept M3 bolts or rivets

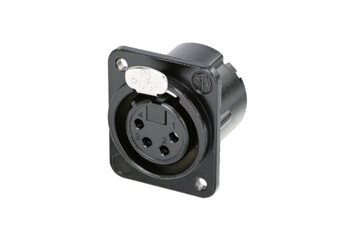

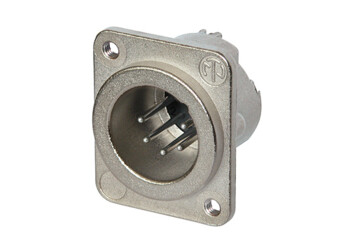

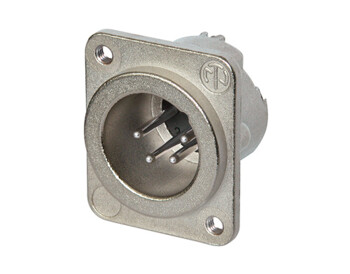

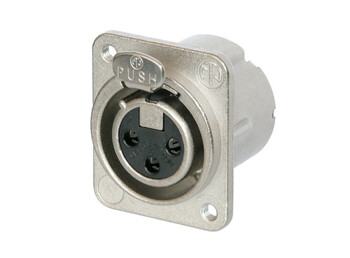

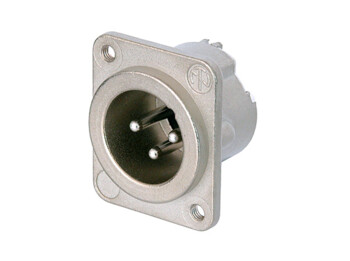

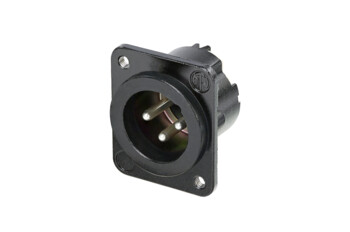

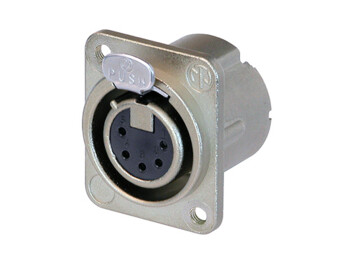

M3 version: M3 tapped thread

Panel thickness
1 - 3 mm
