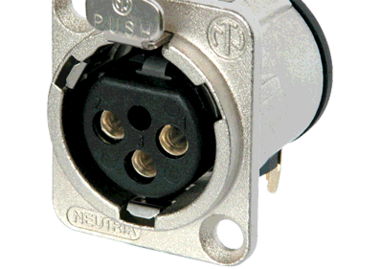

D Series

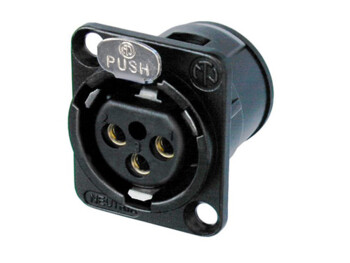

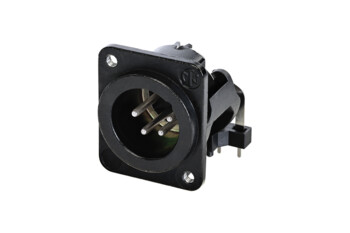

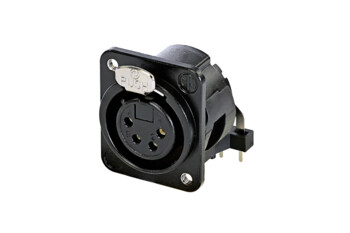

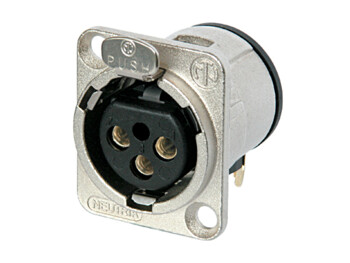

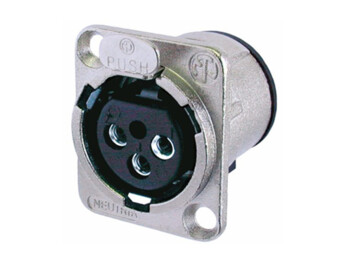

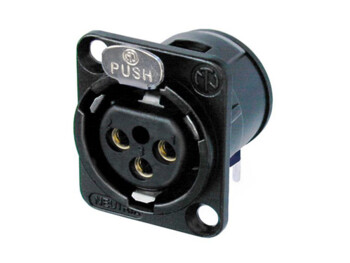

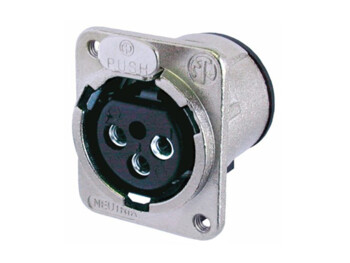

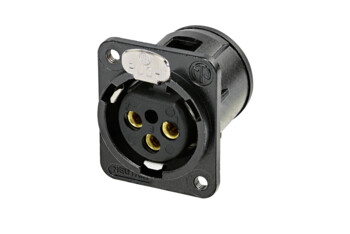

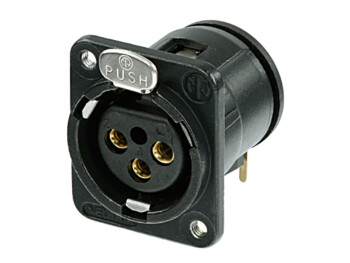

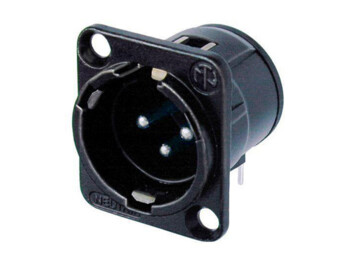

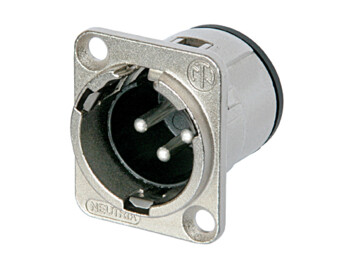

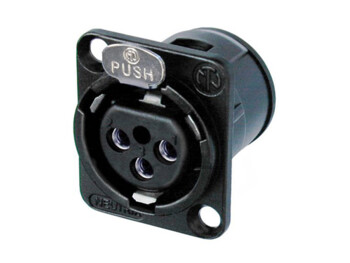

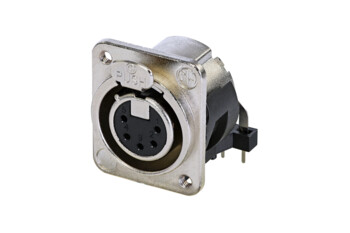

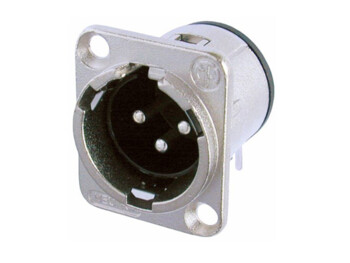

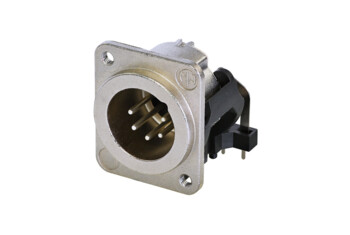

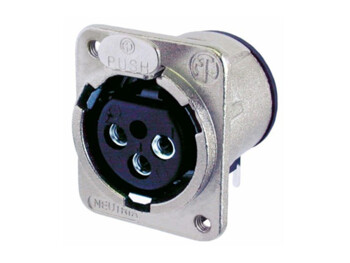

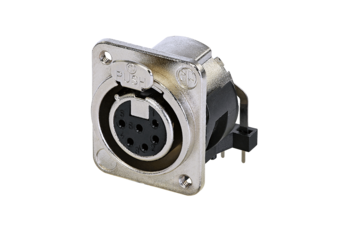

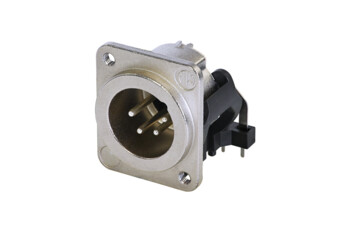

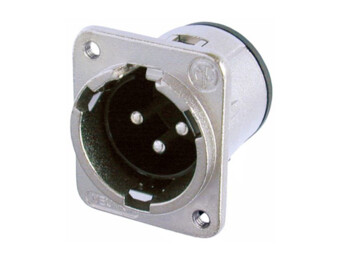

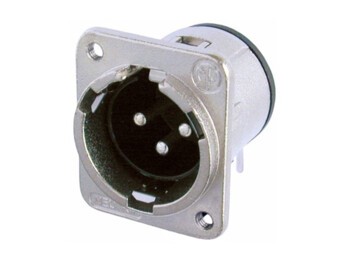

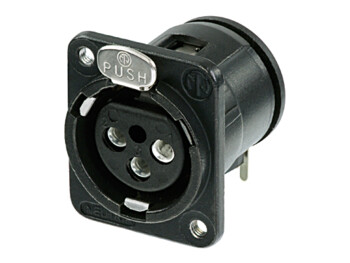

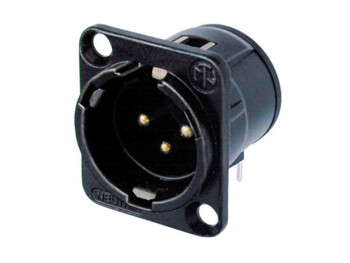

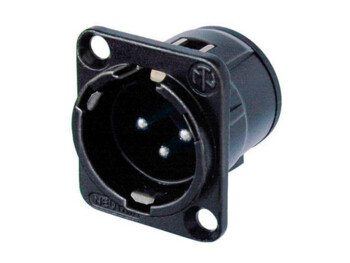

Universal metal body XLR pcb mount series. Unified D-size shell for male and female. Metal shell and 3 ground contacts offer RF protection. Insert is removable from shell for ease assembling. Available in nickel or black housing and silver or gold plated contacts. UL recognized component.
Termination
V = vertical pcb mount, straight pins
H = horizontal pcb mount, angled pins
Locking mechanism
Latch lock
Grounding
Separate ground contact to mating connector shell and front panel
Front and rear panel mount
Fastening
Panel
Standard: Countersunk mounting holes to accept M3 bolts or rivets
M3 version: M3 tapped thread
Insert on PCB
Self tapping screw, diameter 2.2 mm, max. length 5 mm (e.g. KA22x5)
Panel thickness 1 - 3 mm
