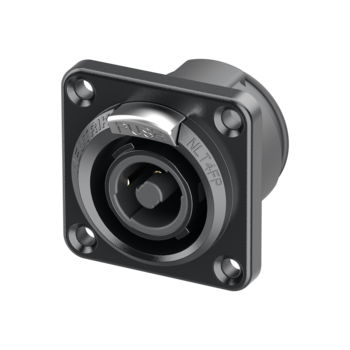

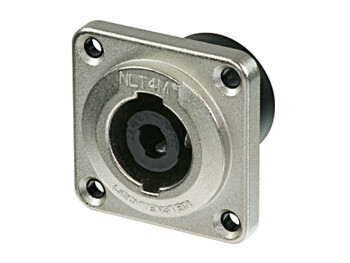

STX Series

The 4 and 8 pole speakON STX Series is especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing and the 4 pole version a built-in gasket providing weatherproof protection to IP54 in mated condition. The 4 pole version is available as 4 gender system including male cable and female chassis connector.

Termination
No suffix = solder termination or ¼" flat tabs (termination e.g. with Faston tab Tyco part # 41829)
V = vertical pcb mount, straight pins

Panel mount
Front and rear

Panel fastening
Standard: Countersunk mounting holes to accept M3 bolts
PCB mount: Self-tapping PLASTITE®* screw with thread 2.9x1.06 and of tri-rondular configuration (A-screw)
* PLASTITE® is a registered trademark of SFS Unimarket
