etherCON_NE8FAV-YK-AE_persp front etherCON_NE8FAV-YK-AE_persp back

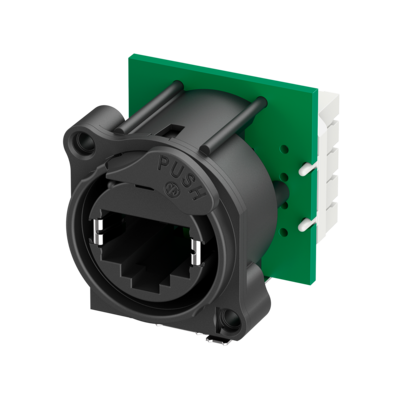

etherCON_NE8FAV-YK-AE_persp front

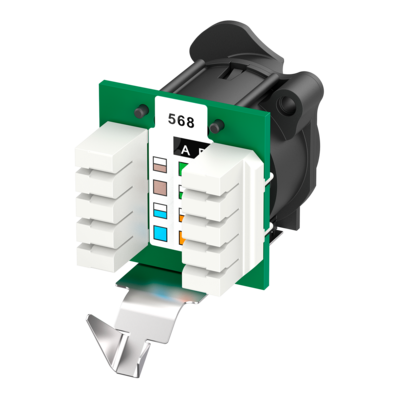

etherCON_NE8FAV-YK-AE_persp back
1/2
neutrik-us / Products / etherCON® RJ45 Connectors / etherCON® Chassis Connectors / etherCON® A Series / NE8FAV-YK-DAE

NE8FAV-YK-DAE

Download Data Sheet

Panel mount RJ45 receptacle with IDC Krone terminals, A-Series cutout with latch lock system, max. panel thickness 3 mm. Mounting screws included.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The all plastic A-Series offers the most space saving and cost effective design.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features & Benefits
  • Accommodates rugged etherCON NE8MX* or any standard RJ45 plug
  • Most space saving and cost effective design
  • Selectable ground - panel connection
  • Compound material of push tab improves ESD protection
  • Approved latch lock system
  • CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801
  • Easy and quick mounting using IDC Krone terminals
  • PoE type 3 class 6 (60W) acc. IEEE 802.3bt
Downloads
30010266_-_NE8FAV-YK-DAE
stp - 3.03 MB
20004204_-_NE8FAV-YK-AE
pdf - 283.86 KB
20004204_-_NE8FAV-YK-AE
dxf - 1.24 MB

Technical Information

Product
Title NE8FAV-YK-DAE
Type  Chassis
Connection Type etherCON
Gender Female
Electrical
Contact resistance  < 50 mΩ
Dielectric strength 1 kV DC
Frequency range 1 – 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage ≤ 57 V
Transmission performance CAT5e acc. to TIA/EIA 568C channel specifications
CLASS D acc. to ISO/IEC 11801 channel specifications
Power over Ethernet PoE type 3 class 6 (60W) acc. IEEE 802.3bt
Mechanical
Insertion force  ≤ 20 N
Withdrawal force  ≤ 20 N
Lifetime > 1000 mating cycles 
Panel thickness Max. 3 mm (0.12”)
Wiresize 0.14 - 0.5 mm²
Wiresize 26 - 20 AWG
Wiring IDC Krone punch down terminals
Locking device Latch lock
Chassis shape A
Mounting A-Screw
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Locking element HPPA
Shell  PBT D202G30
Environmental
Flammability UL 94 V-0
Temperature range  -30 °C to +80 °C 
Solderability Complies with IEC 68-2-20
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)
IEC 60603-7-3 Ed.2.0 (2010-04)
IEC 60512-99-002 Ed.2.0 (2022-01)
IEC 60512-9-3 (2011-06)
