FIBERFOX-X-TREME-NKO2M3-FX-0-050-EBC15--2CH-Front-open FIBERFOX_NKO2S_FX_blue front_persp front_RGB_WEB 2
FIBERFOX-X-TREME-NKO2M3-FX-0-050-EBC15--2CH-Front-open

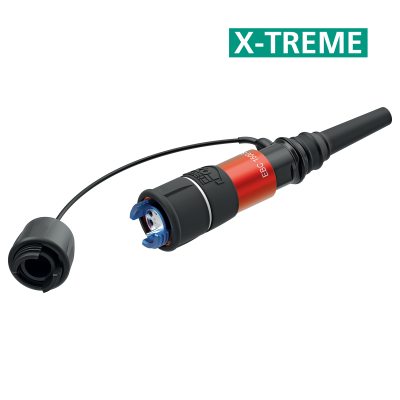

FIBERFOX_NKO2S_FX_blue front_persp front_RGB_WEB 2
1/2
neutrik-us / Products / FIBERFOX / FIBERFOX EBC15 (D-size) / FIBERFOX EBC15 Cable / FIBERFOX X-TREME EBC15 2CH Cable

FIBERFOX X-TREME EBC15 2CH Cable

Download Data Sheet

The FIBERFOX X-TREME EBC15 2CH cable connector offers a cut-proof and rodent resistant double jacket glasses yarn cable construction. Excellent cable retention is achieved using aramid yarn.

The entire cable design is encased by a black PUR outer jacket. This makes the cable assembly ideal for outdoor applications. It withstands greater impacts caused by animals and the outdoor environment. FIBERFOX X-TREME is suited for a vast array of applications, including lighting, network, PA, video, broadcast, defence & government, railway, and petrochemical.

FIBERFOX X-TREME is now available in both multimode and singlemode.

The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The connector is designed according to the MIL-DTL-83526 standard and fits to all other connectors with this standard.

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids, and other contaminations.

The FIBERFOX hermaphroditic coupling eliminates the need for adaptors and female and male mating halves. The cable connector comes pre-assembled and is not available as a single component. The finished cable is available in standardized lengths, packed either on a drum or airspool, and can also be requested to custom lengths.

Features & Benefits
  • Available in multimode and singlemode
  • X-TREME cable protection for demanding outdoor applications
  • Rodent-resistant & cut-proof
  • Extreme robust, heavy-duty, connectors IP68 (mated & unmated)
  • Cables are directly extendable, no couplers required
  • Wear-free connectors, > 10’000 mating cycles without any maintenance
  • Cable connectors are designed acc. To MIL-DTL-83526 and compatible with other connectors using this standard
  • No special cleaning or measurement tools required

Downloads
3D Model NKOX2M3-FX
STEP - 7.29 MB
Drawing NKOX2M3-FX
pdf - 99.54 KB
NKOX2S_FX
pdf - 272.19 KB
Drawing NKOX2M3-FX
vnd.dwg - 263.77 KB
NDS31 - FIBERFOX X-TREME 2CH
pdf - 343.52 KB
Handling Instruction - FIBERFOX
pdf - 1.42 MB
NEUTRIK - FIBERFOX EXPANDED BEAM CONNECTOR - NF32 V7 202410
pdf - 12.82 MB

Technical Information

Product
Title FIBERFOX X-TREME EBC15 2CH
Gender Hermaphroditic
Mechanical
Tensile Strength 1'800N
Compressive load 50'000N
Lifetime (typ.) 10000 mating cycles
Bump resistance 4000 bumps @ 40g acceleration
Vibrational Sinusoidal 10-500Hz, 0.75 amplitude @ 10g acceleration
Material
Boot Rubber (EPDM)
Insert Steel
Shell Aluminium
Shell plating Hard anodize
Strain relief Brass
Environmental
Flammability UL 94 V-0
Protection Class IP68 mated and unmated (1m for 60 min)
Compatibility MIL-DTL-83526
Temperature Range -40°C to + 70°C
Optical
Insertion Loss Multimode Typ. 1.5dB per connection / Max. 2.5dB per connection
Return Loss Multimode N/A
Insertion Loss Singlemode Typ. 1.0 dB max. 2.0 dB per connection (according with IEC 61300-3-4) Max. 2.5dB per connection (acc. with IEC 61300-3-34)
Return Loss Singlemode Typ. >32 dB (according with IEC 61300-3-6)
Optical connector EBC
Optical wiring ISO / IEC 11801
Mobile cable
Colour Black, matte
Core diameter Multimode 50µm / Singlemode 9µm
Cladding diameter 125 µm
Cable jacket PUR
minimal bending radius 92 mm
Number of fibers 2
Cable rentation Aramid yarn
Weight 82 kg/km
Overal diameter 9.2 mm
Outer shield Coated glass yarn
Accessories
NOR-FX*
SCNOX-FX
SCDP-FX-*

Sealing gasket for D-shape chassis connectors, 6 colors

FIBERFOX 27610011 o adapters.png
FIBERFOX Adaptor BOX
FIBERFOX_NO2M4DW-FX_persp front_RGB_WEB !.png
FIBERFOX EBC15 2CH briDge
FIBERFOX_27500745_o_cable_rm_02
FIBERFOX X-TREME EBC15 2CH Ordering Options
Multimode order codeMultimode
product code
DescriptionSinglemode
order code
Singlemode
product code
Description
1035725NKOX2M3-FX-0-050FF X-TREME EBC15 MM 2CH 50m OM3 airspool1038623NKOX2S-FX-0-050FF X-TREME EBC15 SM 2CH 50m  airspool
1035737NKOX2M3-FX-3-050FF X-TREME EBC15 MM 2CH 50m OM3 CableReel GT3801038624NKOX2S-FX-3-050FF X-TREME EBC15 SM 2CH 50m  CableReel GT380
1035727NKOX2M3-FX-0-100FF X-TREME EBC15 MM 2CH 100m OM3 airspool1038625NKOX2S-FX-0-100FF X-TREME EBC15 SM 2CH 100m  airspool
1035739NKOX2M3-FX-3-100FF X-TREME EBC15 MM 2CH 100m OM3 CableReel GT3801038626NKOX2S-FX-3-100FF X-TREME EBC15 SM 2CH 100m  CableReel GT380
1035730NKOX2M3-FX-0-150FF X-TREME EBC15 MM 2CH 150m OM3 airspool1038627NKOX2S-FX-0-150FF X-TREME EBC15 SM 2CH 150m  airspool
1035740NKOX2M3-FX-5-150FF X-TREME EBC15 MM 2CH 150m OM3 CableReel GT4501038628NKOX2S-FX-5-150FF X-TREME EBC15 SM 2CH 150m  CableReel GT450
1035731NKOX2M3-FX-0-200FF X-TREME EBC15 MM 2CH 200m OM3 airspool1038629NKOX2S-FX-0-200FF X-TREME EBC15 SM 2CH 200m  airspool
1035741NKOX2M3-FX-4-200FF X-TREME EBC15 MM 2CH 200m OM3 CableReel HT5821038630NKOX2S-FX-4-200FF X-TREME EBC15 SM 2CH 200m  CableReel HT582
1035732NKOX2M3-FX-0-250FF X-TREME EBC15 MM 2CH 250m OM3 airspool1038631NKOX2S-FX-0-250FF X-TREME EBC15 SM 2CH 250m  airspool
1035743NKOX2M3-FX-4-250FF X-TREME EBC15 MM 2CH 250m OM3 CableReel HT5821038632NKOX2S-FX-4-250FF X-TREME EBC15 SM 2CH 250m  CableReel HT582
1035733NKOX2M3-FX-0-300FF X-TREME EBC15 MM 2CH 300m OM3 airspool1038633NKOX2S-FX-0-300FF X-TREME EBC15 SM 2CH 300m  airspool
1035744NKOX2M3-FX-4-300FF X-TREME EBC15 MM 2CH 300m OM3 CableReel HT5821038634NKOX2S-FX-4-300FF X-TREME EBC15 SM 2CH 300m  CableReel HT582
1035735NKOX2M3-FX-0-500FF X-TREME EBC15 MM 2CH 500m OM3 airspool1038635NKOX2S-FX-0-500FF X-TREME EBC15 SM 2CH 500m  airspool
1035736NKOX2M3-FX-0-1000FF X-TREME EBC15 MM 2CH 1000m OM3 airspool1038636NKOX2S-FX-0-1000FF X-TREME EBC15 SM 2CH 1000m  airspool
*Customized Cable Solutions with different length up on request.
Markets & Applications
  • Defense & Government
  • Railway
  • Oil & Gas Station
  • Video
  • PA Market
  • Lighting & Network
