FIBERFOX - Fiber Optics Chassis Connector EBC25 4CH with Cable - Green V1 offen FIBERFOX_NO4SJW-FG-BO_fixed patch cable_persp back_RGB_WEB
FIBERFOX - Fiber Optics Chassis Connector EBC25 4CH with Cable - Green V1 offen

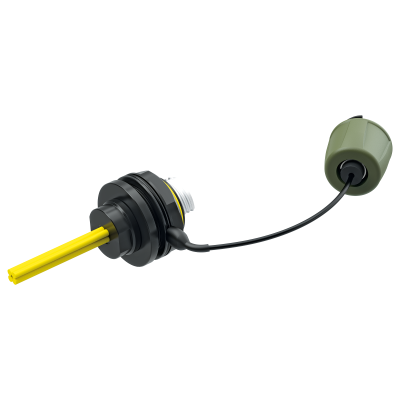

FIBERFOX_NO4SJW-FG-BO_fixed patch cable_persp back_RGB_WEB
1/2
neutrik-us / Products / FIBERFOX / FIBERFOX EBC25 (jam nut) / FIBERFOX EBC25 Chassis / FIBERFOX EBC25 4CH fixed patch cable

FIBERFOX EBC25 4CH fixed patch cable

Download Data Sheet

The FIBERFOX EBC25 4CH fixed patch cable is an expanded beam singlemode hermaphroditic chassis connector suited for a vast array of applications. With its jam-nut design is suitable for all kinds of industrial, defense & government or even railway applications.

The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The chassis connector is designed according to the MIL-DTL-83526 standard and fits to all other connectors with this standard.

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX EBC25 4CH chassis connector converts a standardized LC patch cable into an expanded beam solution. It acts as a “feed-through” and has a jam-nut design.

Features & Benefits
  • Available in singlemode
  • Suitable for installation and wireways without special tools
  • Integration of other fiber optic systems into FIBERFOX
  • No splicer, no expertise required for Installation
  • Very compact jam-nut design
  • IP68 Waterproof even without a protective cap, optimized for outdoor use
  • Extremely low maintenance
Downloads
NO4SJW-FG-BO_Drawing_01
pdf - 927.06 KB
Assembly Instruction FIBERFOX Chassis Connector EBC25
pdf - 2.04 MB
NEUTRIK - FIBERFOX EXPANDED BEAM CONNECTOR - NF32 V7 202410
pdf - 12.82 MB
Links

Technical Information

Product
Title FIBERFOX EBC25 4CH fixed patch cable
Gender Hermaphroditic
Mechanical
Mounting Direction Front & Rear Mounting
Chassis Shape Jam nut
Lifetime (typ.) 10000 mating cycles
Locking device Screwed
Bump Resistance 4000 bumps @ 40g acceleration
Vibrational Sinusoidal 10-500Hz, 0.75 amplitude @ 10g acceleration
Material
Insert Steel
Shell Aluminium
Shell plating Hard anodize
Strain relief Brass
Environmental
Flammability UL 94 V-0
Protection Class IP68 mated (15m for 24h acc. MIL-DTL-83526D Section 3.11.28)
and unmated (1m for 24h)
Compatibility MIL-DTL-83526
Temperature Range -46°C to +71°C (-51°F to 160°F)
Optical
Insertion Loss Singlemode Typ. 1.0dB/per connection max. 2.0dB/per connection (according with IEC 61300-3-4)
Max. 2.5dB/per connection (acc. with IEC 61300-3-34)
Return Loss Singlemode Typ. >32 dB (according with IEC 61300-3-6)
Optical connector EBC25
Optical wiring ISO / IEC 11801
Accessories
industrial

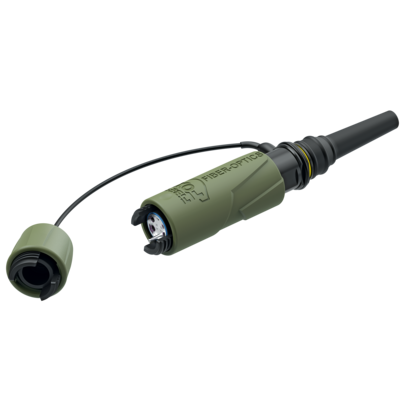

FIBERFOX_NKO4S_FG_persp front_RGB_WEB.png
FIBERFOX EBC25 4CH Cable

FIBERFOX EBC25 4CH cable connector – fully compliant with MIL-DTL-83526 standard

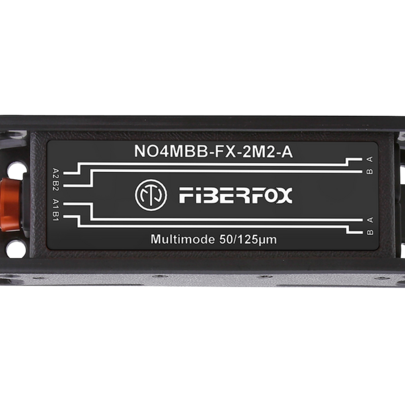

FIBERFOX 27610011 o adapters.png
FIBERFOX Adaptor BOX
FIBERFOX - Fiber Optics Chassis Connector EBC25 4CH with Cable - Green V1 offen
FIBERFOX EBC25 4CH ordering options
Order codeProduct codeDesciption
1037448NO4SJW-FG-LC-0.5FF EBC25 Chassis 4CH SM 0.5m Fixed LC Patch cable
1037450NO4SJW-FG-LC-1FF EBC25 Chassis 4CH SM 1m Fixed LC Patch cable
1037452NO4SJW-FG-LC-2FF EBC25 Chassis 4CH SM 2m Fixed LC Patch cable
Market & Application
  • Railway
  • Oil & Gas Station
  • Video
  • PA Market
  • Lighting & Network
