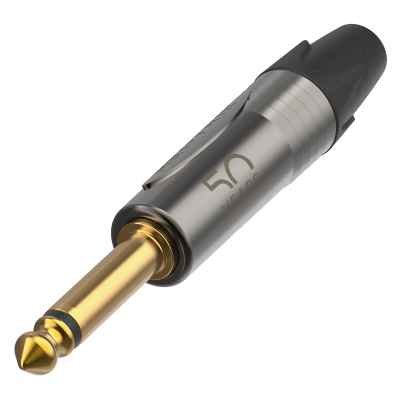

NP2X-50
2 pole 1/4" professional phone plug, 50th Anniversary Special Edition
To mark this milestone, we proudly present our 50th Anniversary Special Edition
Crafted with a unique dark grey conductive metal plating and the 50 years anniversary logo laser engraved, these connectors combine exceptional durability and elegance, while gold-plated contacts ensure superior performance and reliability.
Features & Benefits
- conductive metal plating
- gold plated contacts
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
Downloads
Technical Information
| Product | |
|---|---|
| Title | NP2X-50 |
| Product family | Plug |
| Connection type | cable connector |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 1,0 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | 50 Vac |
| Mechanical | |
|---|---|
| Cable O.D. | 4.0 - 7.0 mm |
| Lifetime | min. 1000 mating cycles |
| Wiresize | 1.0 mm2 |
| Wiresize | 18 AWG |
| Wiring | Solder contacts |
| Material | |
|---|---|
| Boot | Polyacetal (POM) + PU |
| Contact | Brass (CuZn39Pb3) |
| Contact plating | 0.2 µm Au |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | 50 years Special Edition plating CuNi |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
