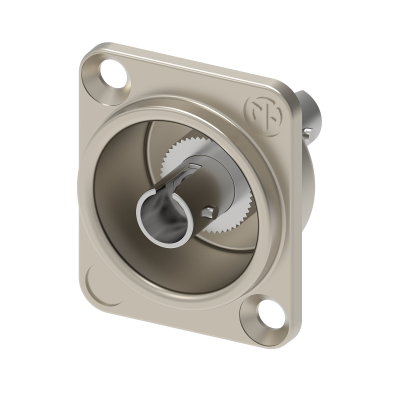

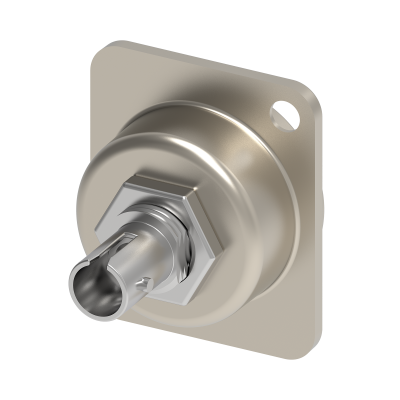

NO1-FD-ST
Robust ST fiber feedthrough solution in standardized D-size format for easy and reliable integration into professional applications.
Features & Benefits
- Standard D-size compatibility: Seamless integration into existing panels and systems
- ST feedthrough design: Easy extension of fiber connections
- Robust construction: Designed for professional environments
- Versatile use: Ideal for installations requiring simple and reliable fiber patching
Technical Information
| Product | |
|---|---|
| Title | NO1-FD-ST |
| Gender | Feed-through |
| Mechanical | |
|---|---|
| Insertion force | N/A |
| Withdrawal force | 2N to 6N |
| Lifetime (typ.) | 500 mating cycles (acc. to IEC61300-2-2) |
| Locking device | N/A |
| Wiresize | N/A |
| Mounting Direction | Front Mounting |
| Chassis shape | D |
| Material | |
|---|---|
| Insert / Adapter | Zn-alloy |
| Housing | Zinc diecast (ZnAl4Cu1) |
| Housing plating | nickel-plated |
| Alignment sleev | Zr02(ceramic) |
| Environmental | |
|---|---|
| Temperature range | -40 °C to +80 °C |
| Protection class | N/A |
| Optical | |
|---|---|
| Optical Connector | ST simplex |
| Standards | |
|---|---|
| Interface | IEC 61754-2 |
| Performance | IEC 61753-1, Category B |
| Test | IEC 61300-2-1 |
| RoHS | compliant |
Product Code
| Product Code | Material description | Fibertype Compatibility |
| NO1-FD-ST | opticalCON chassis D-Size ST Feedthrough | Multimode and Singlemode |
Applications
Broadcast, AV installations and any application where a straightforward ST fiber feedthrough solution in a standardized format is required.
