NL4MP

*DISCONTINUED* Please see successor NL4MPXX

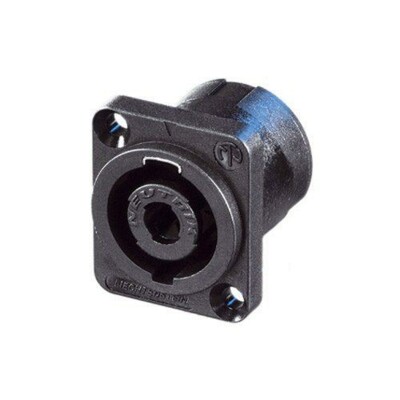

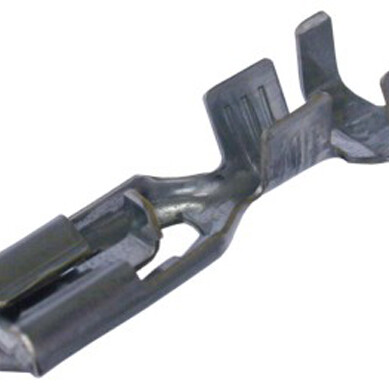

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits

Current rating 30 A rms
Glass reinforced materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area

Downloads

03 Section speakON PG EN 202202-V23

pdf - 5.55 MB

BDA 458 V2 - speakON - NL2MP + NL4MP + NL8MPR

pdf - 191.64 KB

speakon-wiring-suggestion

pdf - 342.87 KB

speakon-flange-and-fastening-layout

pdf - 130.14 KB

Technical Information

Product
Title	NL4MP
Connection Type	speakON
Gender	male

Electrical
Contact resistance	≤ 3 mΩ (after lifetime)
Dielectric strength	4 kVdc (peak)
Insulation resistance	> 1 GΩ (after dampheat)
Rated current per contact	30 A rms continuous
Rated current per contact	40 A audiosignal, duty cycle 50 %
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an AC mains or power supply connector!
